Short Description:
The bedside infotainment terminal is designed for the hospital and clinical environment. It integrates a computer, television, phone and nurse call button into a single, easy-to-use, touch-screen product that provides patients with entertainment, communication, self-service and education options. It‘s also capable of managing clinical records from the bedside in real time, visual control from the nursing station or communication and attention with doctors in wards, hospitals.
Brief Features:
- 21.5 " 1920 X 1080 IPS LCD
- 10-point capacitive multi-touch screen, with anti-bacterial antiviral, alcohol, support gloves touch
- Anti-bacterial housing, IP65 front panel
- High-performance Qualcomm processor
- Android13 OS, 4G RAM +64G Flash
- Handset for service call, key buttons and remote control (optional)
- Built-in 16 MP X COMOS camera & reading light
- Support WIFI, Bluetooth, 4G Module, RFID/NFC reader (optional)
- With COM, Earphone, type C, LAN ports, POE/POE+ (optional)
- Comply with IEC60601-1, EN60601-1, ISO22196, CE, FCC


| SYSTEM |
Processor |
Qualcomm ARM KryoTM260 processor, Octa-core 64bit |
| Graphic |
Adreno TM 610 |
| RAM |
4G DDR4 (default)/8GB (optional) |
| ROM |
64G UFS (default)/128GB (optional) |
| OS |
Android 13 |
| Video |
Encoding:4K@30fps,H.264P8; Decoding:4K@30fps, H.264P8P9, 1080p@30fps, MPEG-2 |
| Audio |
EVRC, EVRC-B, EVRC-WB, G.711, G.729AAB, GSM-FR, GSM-EFR, GSM-H, AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR |
| DISPLAY |
Resolutions |
1920(H)x1080(V) |
| LCD Panel |
21.5”, IPS |
| Brightness |
500cd/㎡ |
| Contrast Ratio |
1000:1 |
| View Angle(°) |
89/89(L/R), 89/89(U/D) |
| Touch Panel |
Sensitive 10-point capacitive touch screen |
| FUNCTION |
WiFi |
IEEE 802.11 a/b/g/n/ac 2.4/5GHz |
| Bluetooth |
Bluetooth 5.0 |
| 3G/4G |
Support (optional) |
| RFID |
Combo smart card reader & Mifare RFlD (optional) |
| Camera |
16MP CMOS front camera |
| Handset |
Full-function handset with remote control (optional) |
| Speaker |
6Ω/2Wx 2 |
| Sensor |
Light Sensor |
| Function Key |
Brightness, Home, Return, Channel-, Channelt, Backlight, Vol, Volt, Lamp |
| INTERFACE |
l/O Ports |
Earphone Jack x 2 |
| Handset Jack x 1 |
| USB HOST 2.0 x 2 |
| USB-C x1 |
| Micro SD Card Slot x 1 |
| Nano SlM Card Slot x 1 |
| HDMl In x 1 |
| RS232 x1 |
| Internal Microphone x 1 |
| RJ45 100M x1(PoE++, 60W, optional) |
| GPS x1 (Optional) |
| OTHER |
Power Consumption |
≤28W |
| Dc In |
9-36V DC |
| Operating Temp. |
0°C to +50℃C |
| Storage Temp. |
-20°C to +60°C |
| Dimensions(LWD) |
533.9 x 349.4 x 45.5 mm |
| Weight |
4.6kg (without handset); 5.1kg (with handset) |
| Certifications |
IEC 60601-1,EN 60601-1,CE,FCC, ISO 22196 |
|
|
|
|

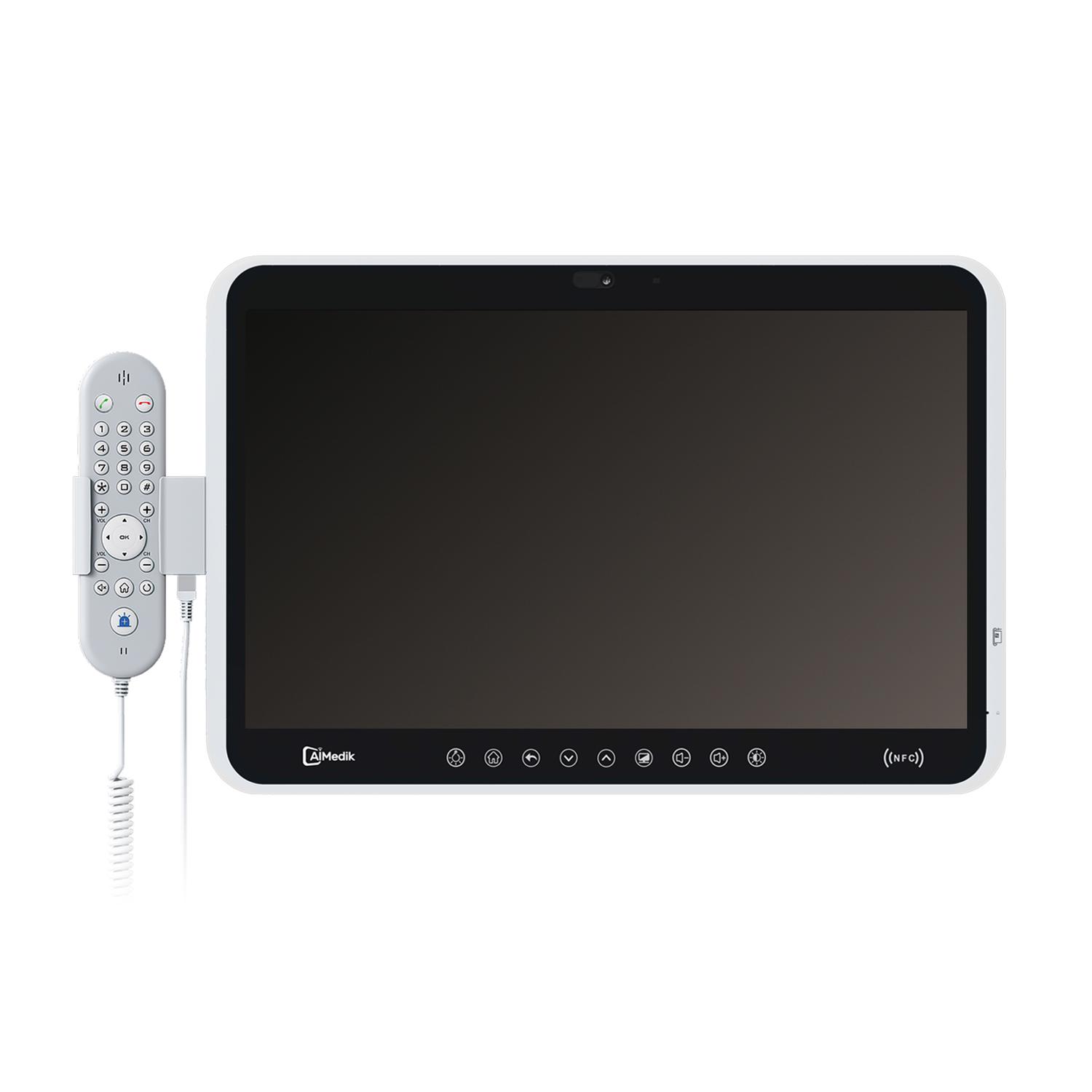

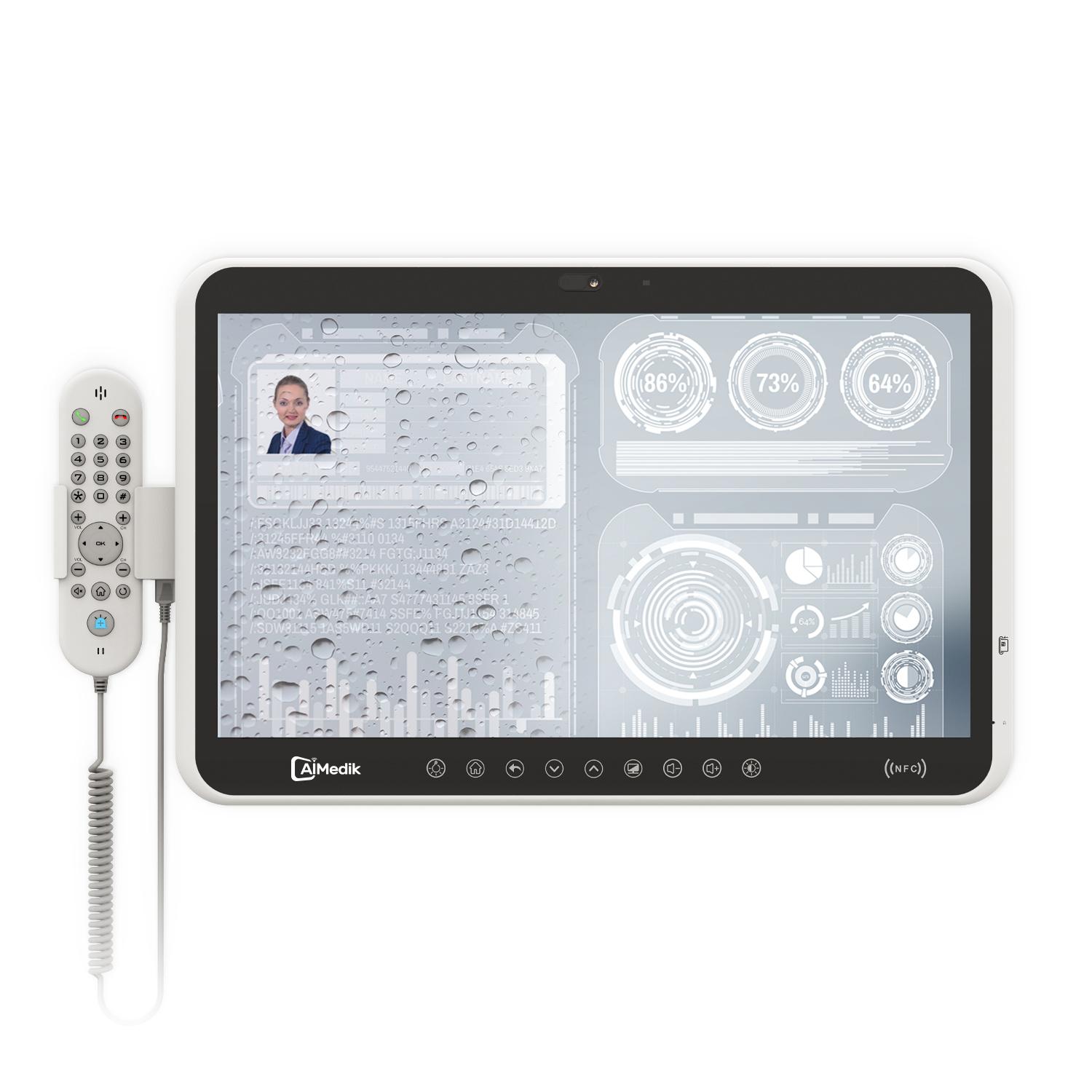

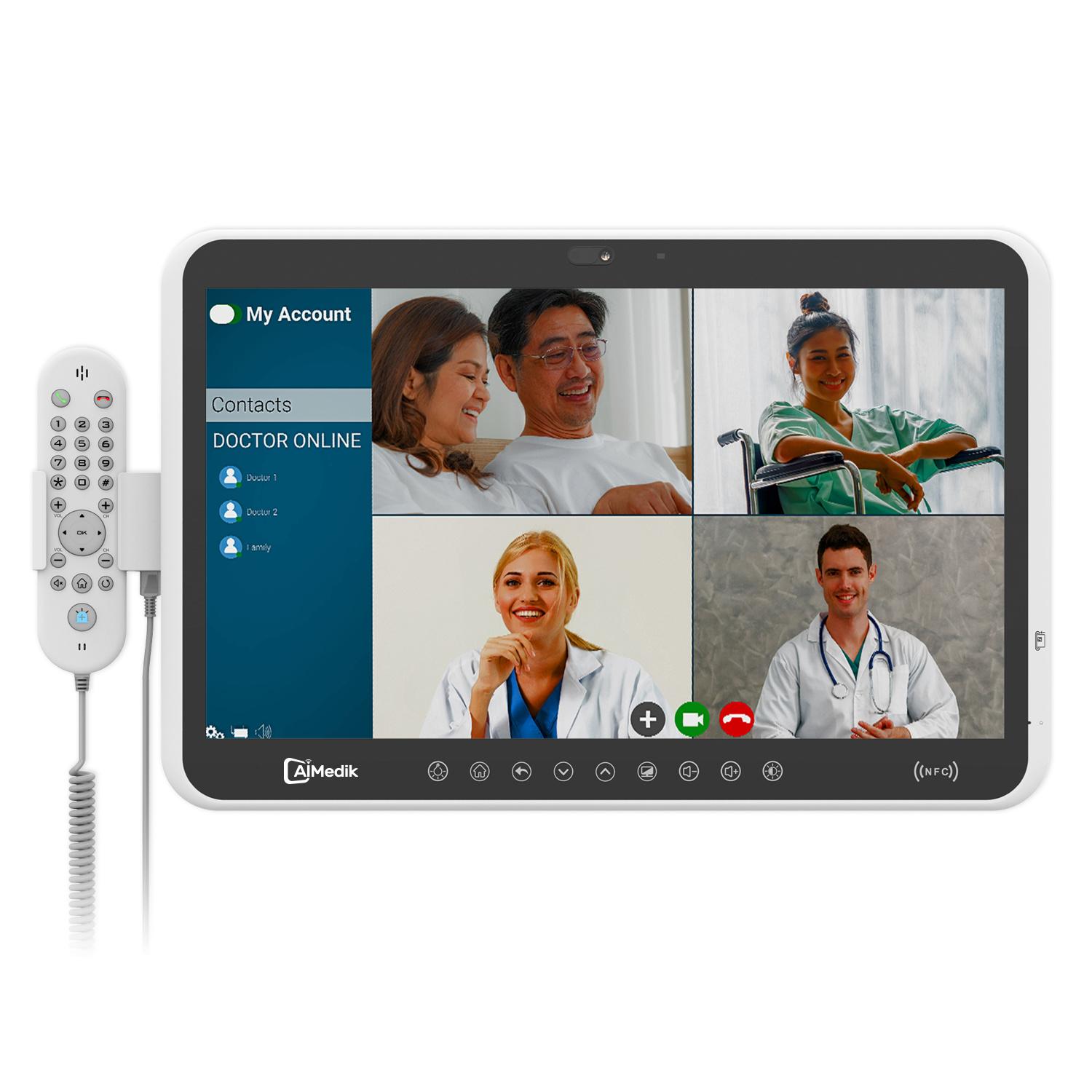

Product Image
|
|
Bedside information terminal
Interactive Patient TV
Healthcare terminal
Bedside infotainment terminal
Medical Tablet
|
|
|
|
